Fairfield Bank Barn

Fairfield, Pennsylvania

Our client, wishing to retire to the idyllic Pennsylvania countryside, asked us to restore his beautiful bank barn and prepare it to support his cattle operations.

Click on images below to view at larger size.

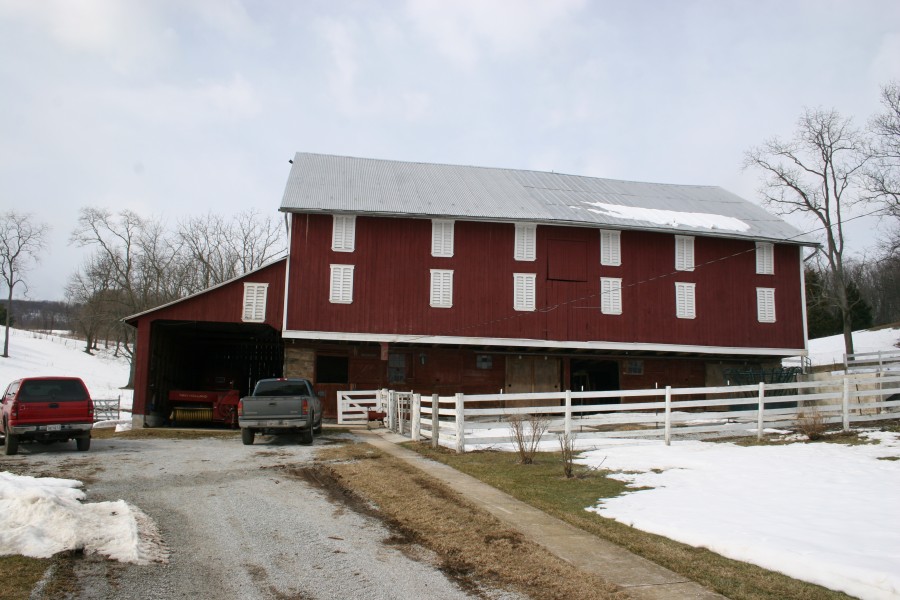

The barn as it appeared in February of 2010.  Its outwardly sound appearance hid considerable frame deterioration.

The barn as it appeared in February of 2010. Its outwardly sound appearance hid considerable frame deterioration.

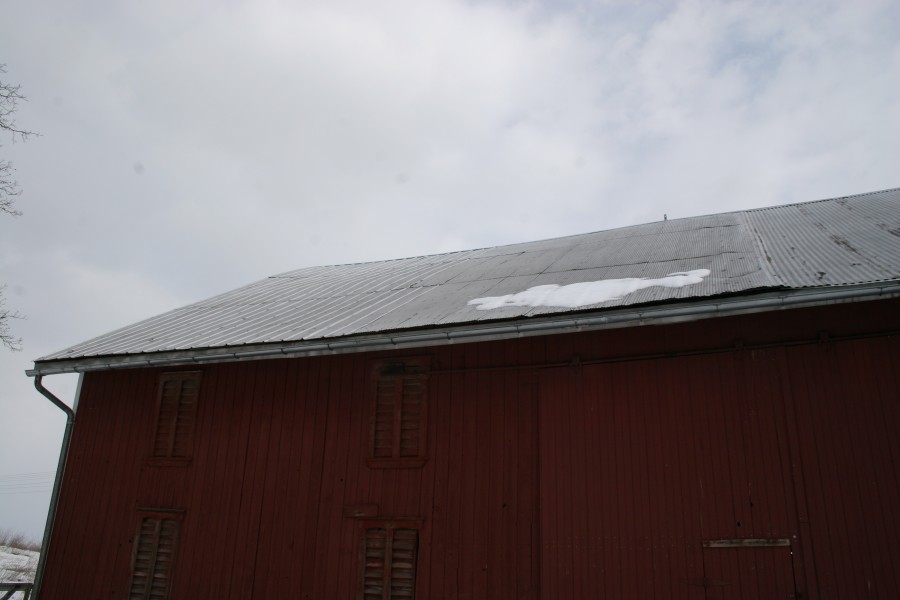

The roof is a combination of corrugated metal styles which have leaked for decades, contributing to the frame deterioration.

The roof is a combination of corrugated metal styles which have leaked for decades, contributing to the frame deterioration.
The barn is covered in a very unusual vertical scalloped-edge "German" siding in white pine.

The barn is covered in a very unusual vertical scalloped-edge "German" siding in white pine.

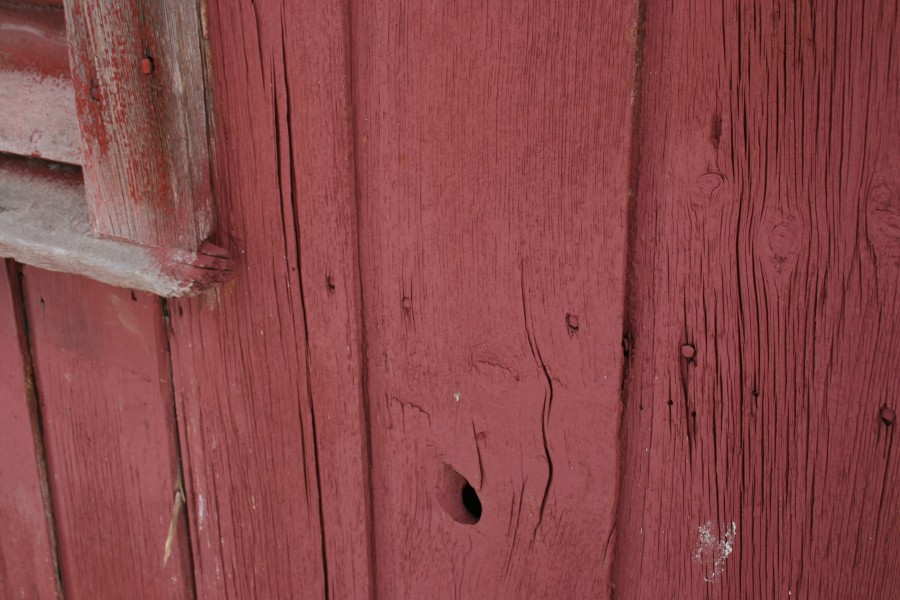

The siding no longer provides much weather protection for the frame, either.

The siding no longer provides much weather protection for the frame, either.
Generations of old repairs show that some damage has been present for a long time.

Generations of old repairs show that some damage has been present for a long time.
Obvious signs of failures and displacements abound.

Obvious signs of failures and displacements abound.

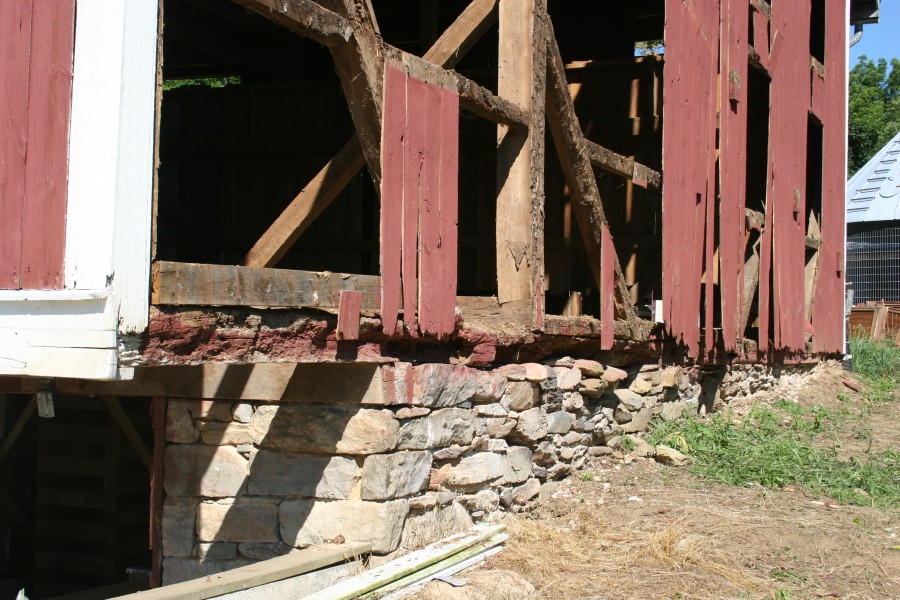

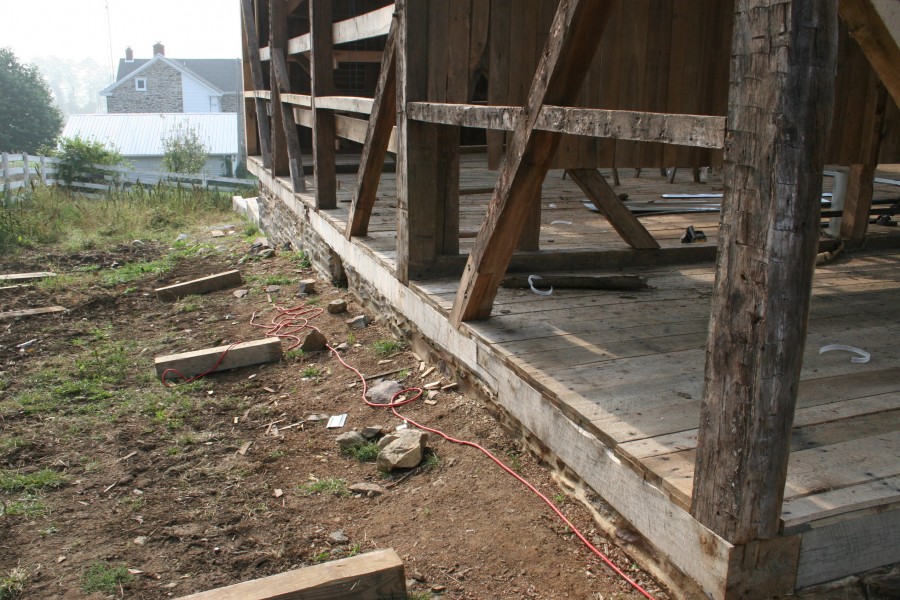

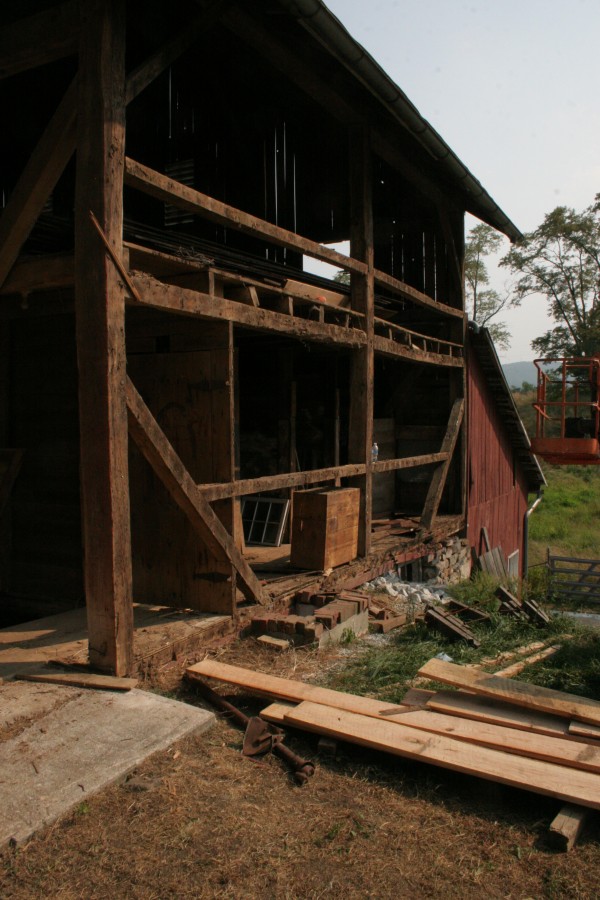

Siding removed shows sill timbers in advanced state of decay.

Siding removed shows sill timbers in advanced state of decay.

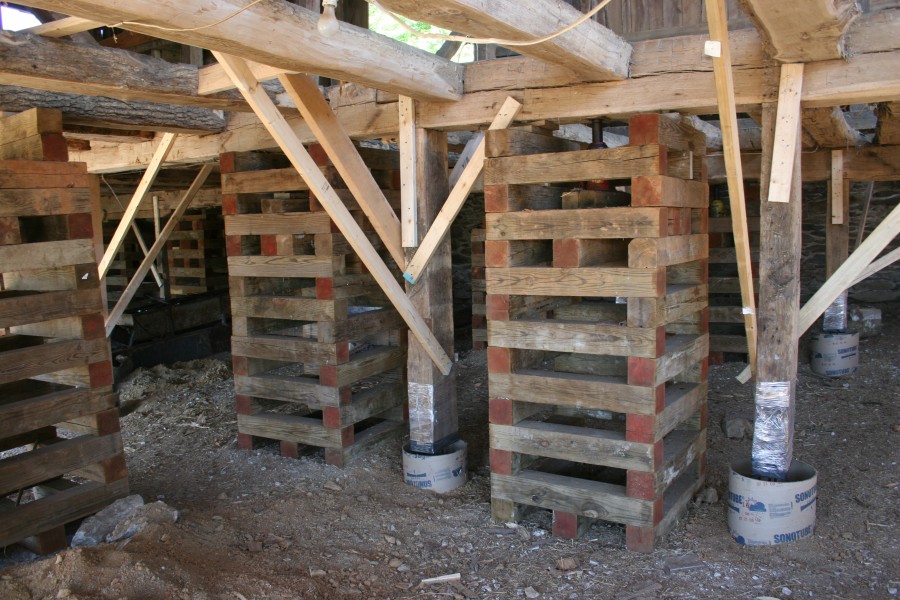

Flooring removed and floor framing cribbed to allow parlor posts to be replaced and new footings installed.

Flooring removed and floor framing cribbed to allow parlor posts to be replaced and new footings installed.

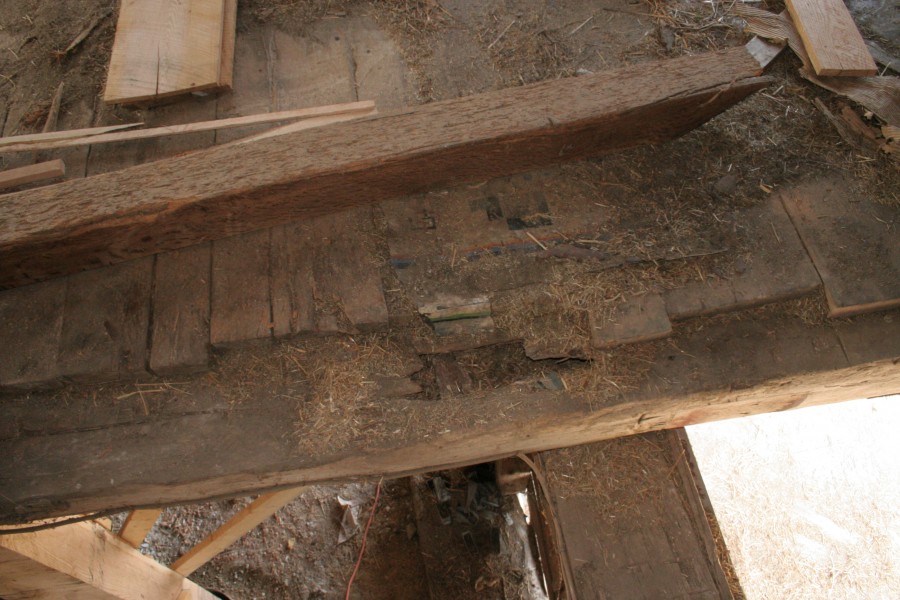

Removing materials like flooring often reveals hidden deterioration like the large void in this bent joist caused by a roof leak far above.

Removing materials like flooring often reveals hidden deterioration like the large void in this bent joist caused by a roof leak far above.

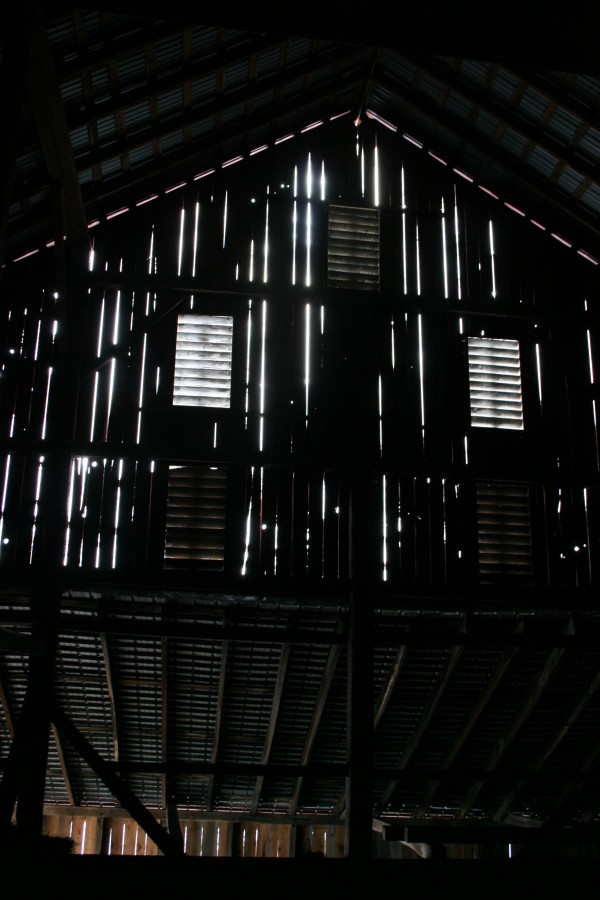

Siding hides many ills.

Siding hides many ills.
Original ventilation louvers repaired and repainted.

Original ventilation louvers repaired and repainted.

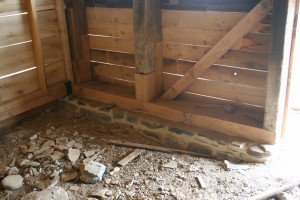

Forebay wall, with original posts spliced, new sill, new stone footing, and siding.

Forebay wall, with original posts spliced, new sill, new stone footing, and siding.

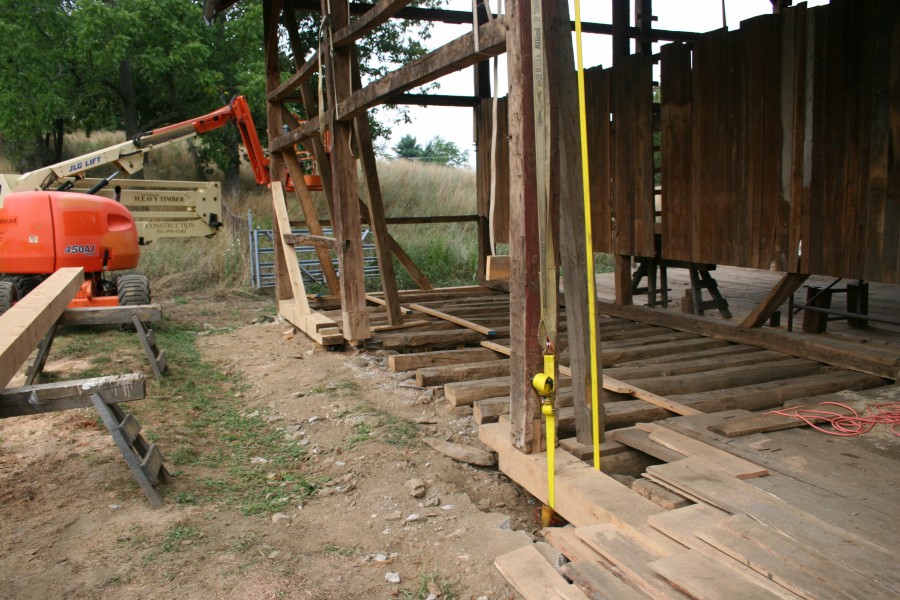

Sill timber replacement next to the barn bridge.

Sill timber replacement next to the barn bridge.

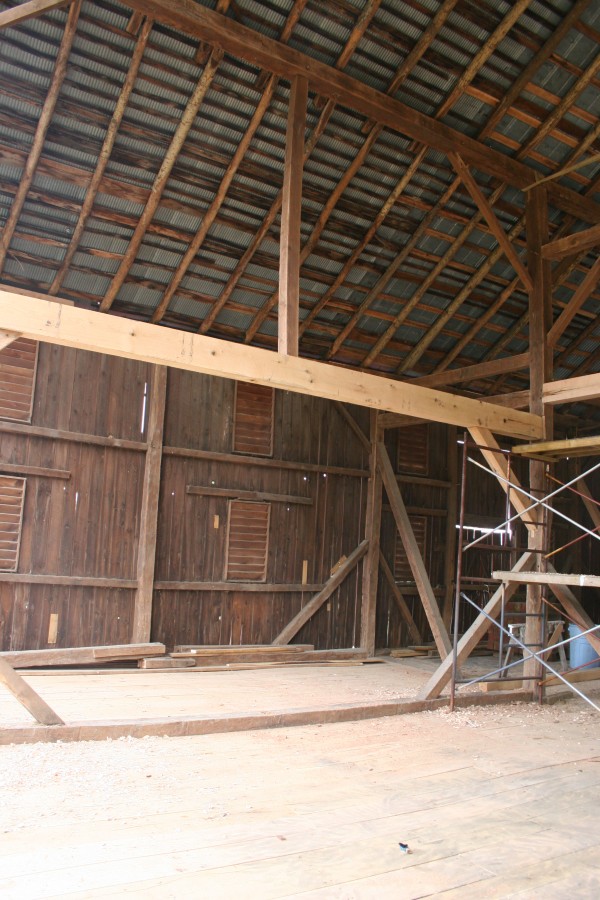

A modification for modern uses:  This heavy carrying beam allows equipment to pass deeper into the barn for hay storage.

A modification for modern uses: This heavy carrying beam allows equipment to pass deeper into the barn for hay storage.

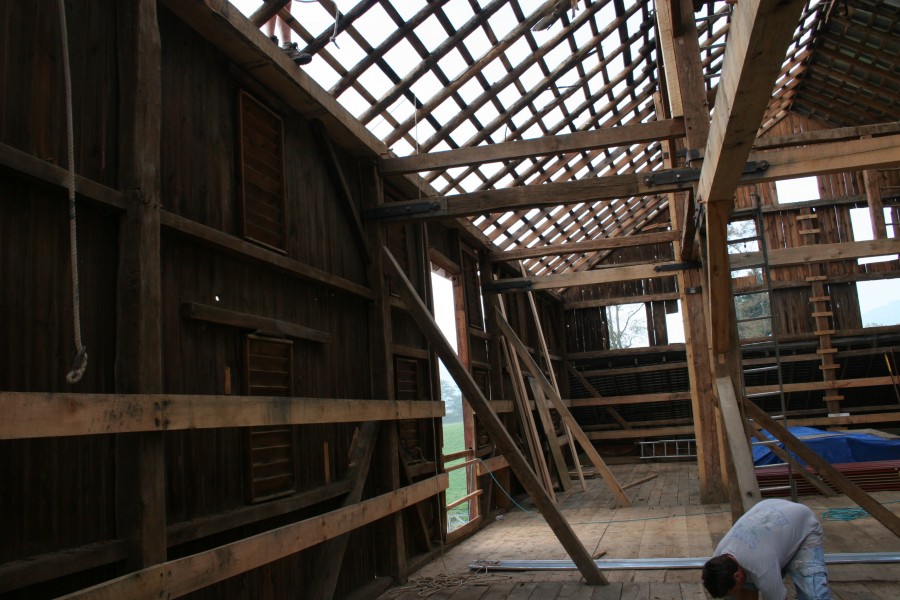

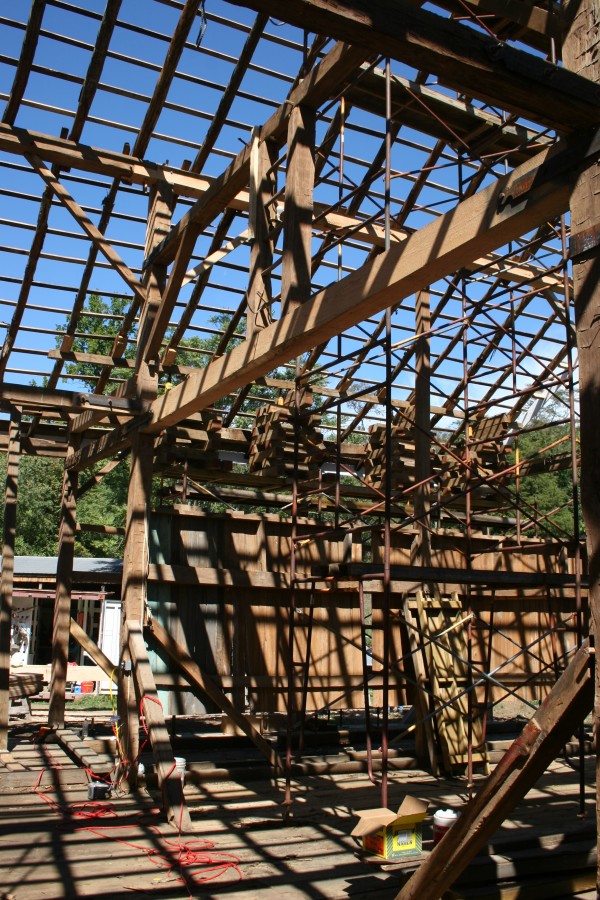

With the roof removed, the skip sheathing casts shadows across repair and original timbers.

With the roof removed, the skip sheathing casts shadows across repair and original timbers.

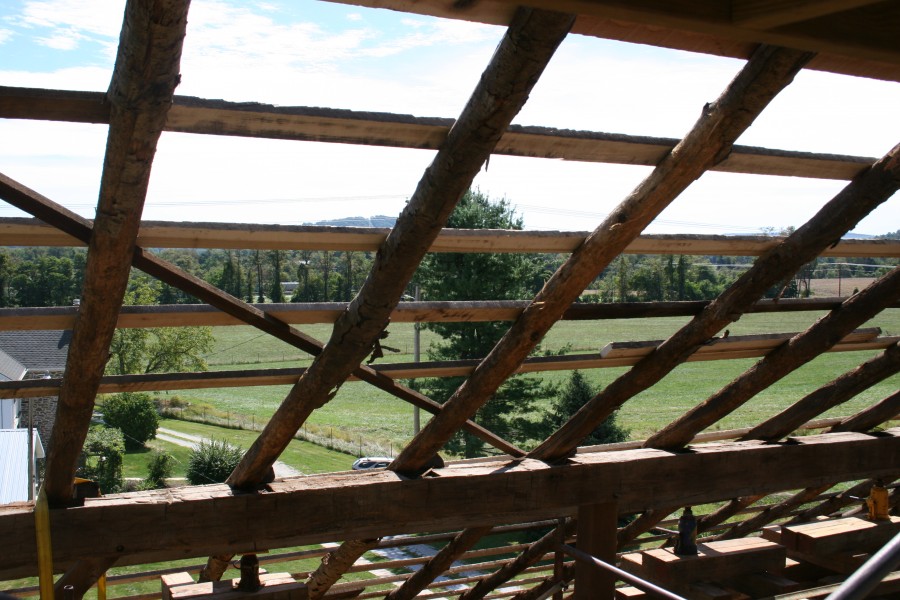

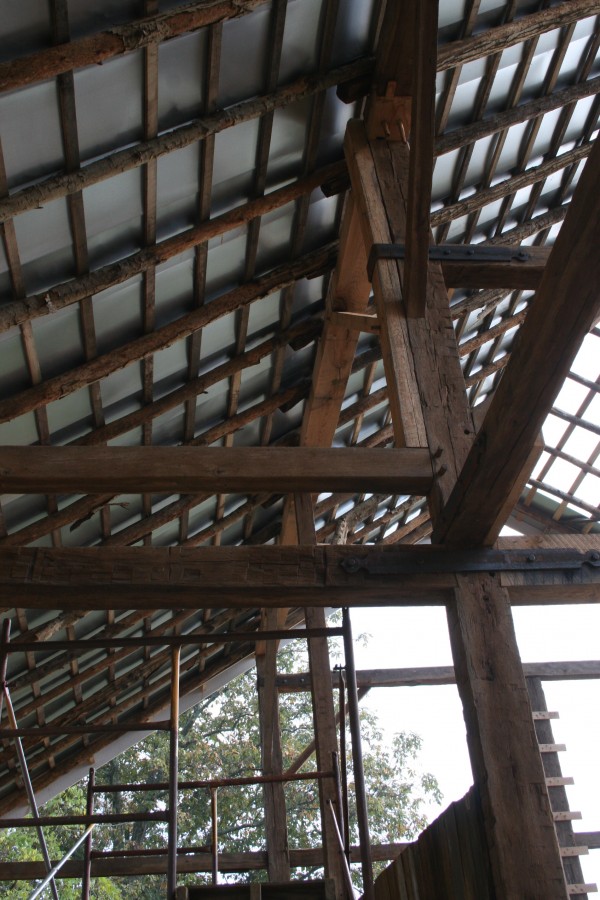

New skip sheathing over original pole rafters with the bark still intact.

New skip sheathing over original pole rafters with the bark still intact.

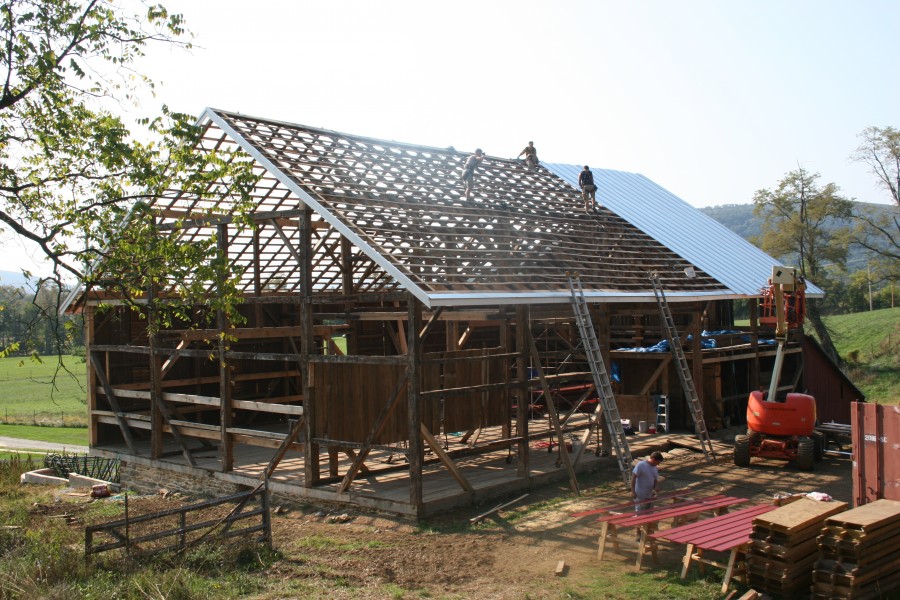

New standing seam metal roofing being installed

New standing seam metal roofing being installed

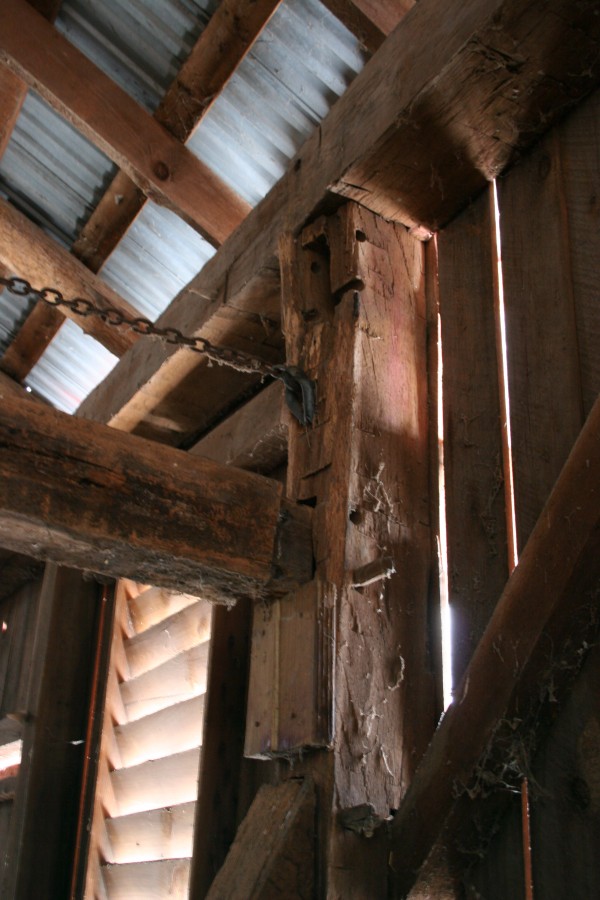

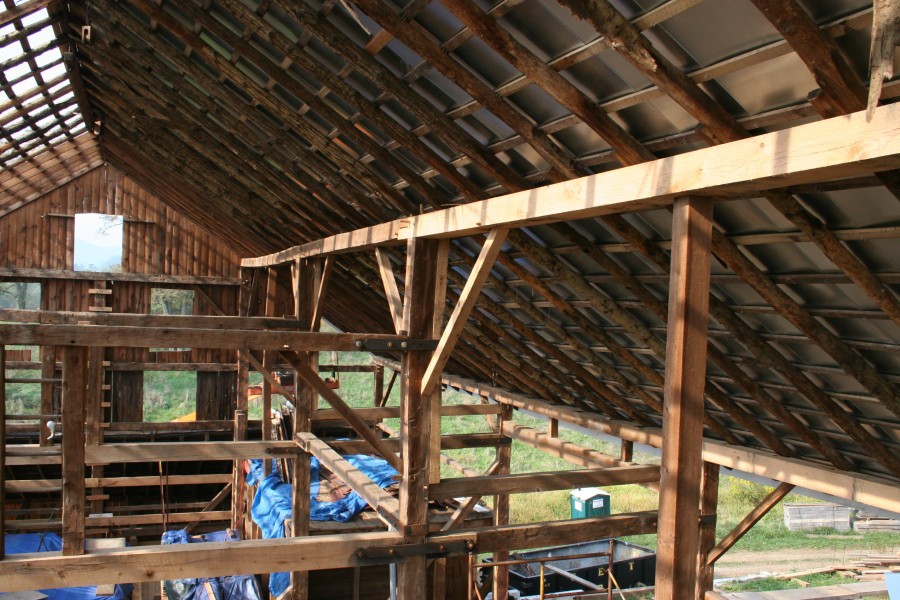

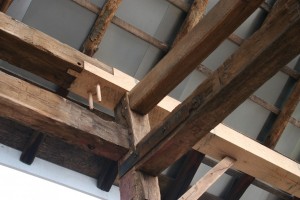

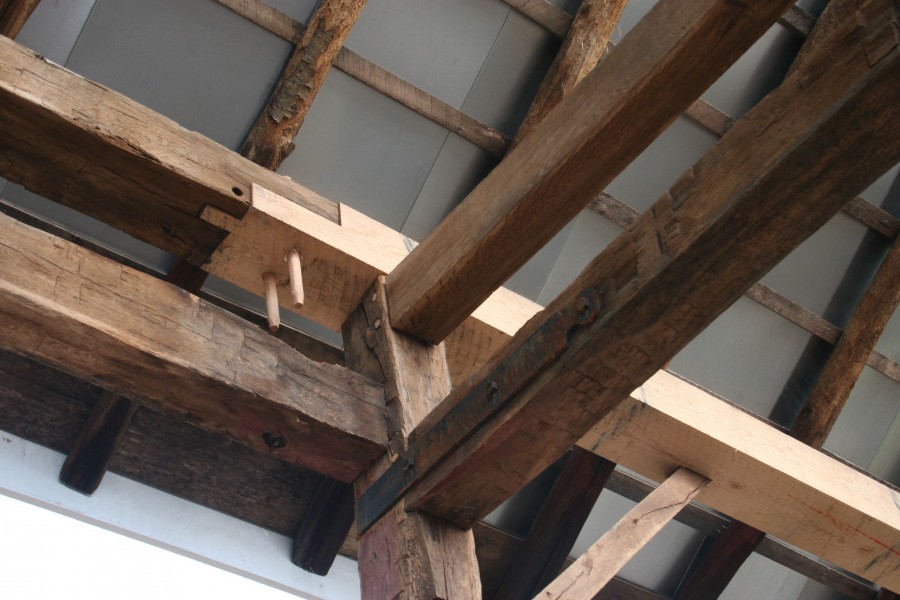

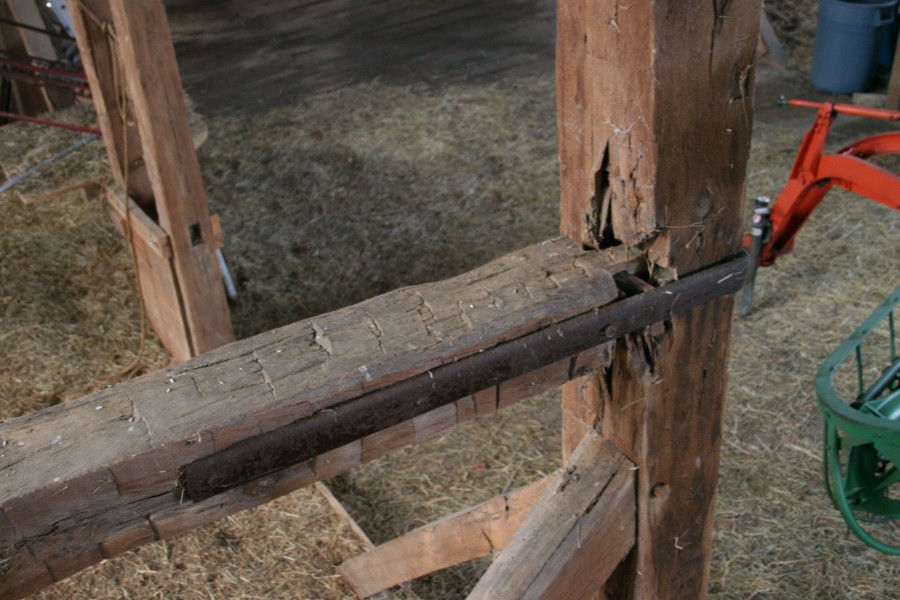

Replacement timbers are joined to originals using the traditional joinery.  Steel straps at unions show where existing joinery has been supplemented to resist tension loads.

Replacement timbers are joined to originals using the traditional joinery. Steel straps at unions show where existing joinery has been supplemented to resist tension loads.

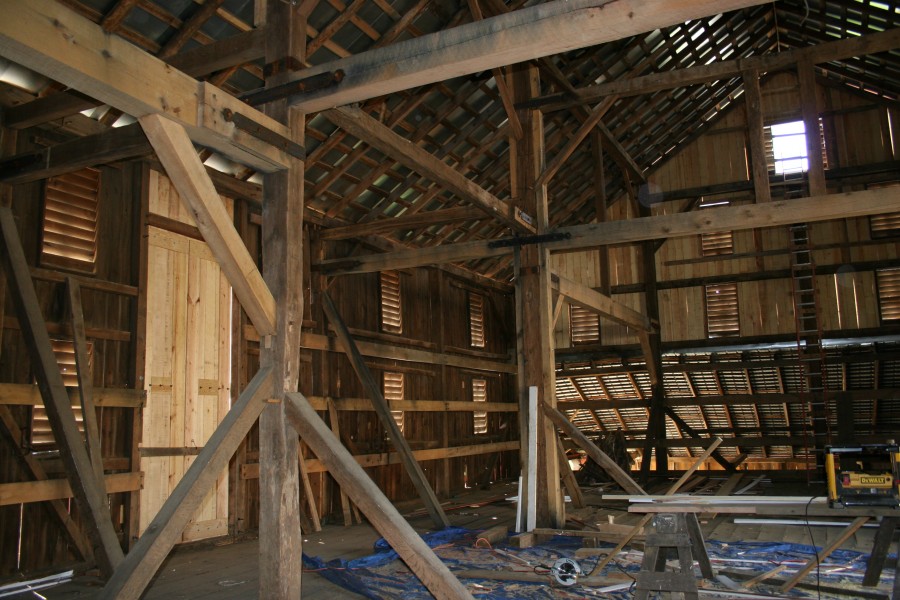

Supplemental "sister" timbers are used to reinforce remaining members which were over-strained.

Supplemental "sister" timbers are used to reinforce remaining members which were over-strained.

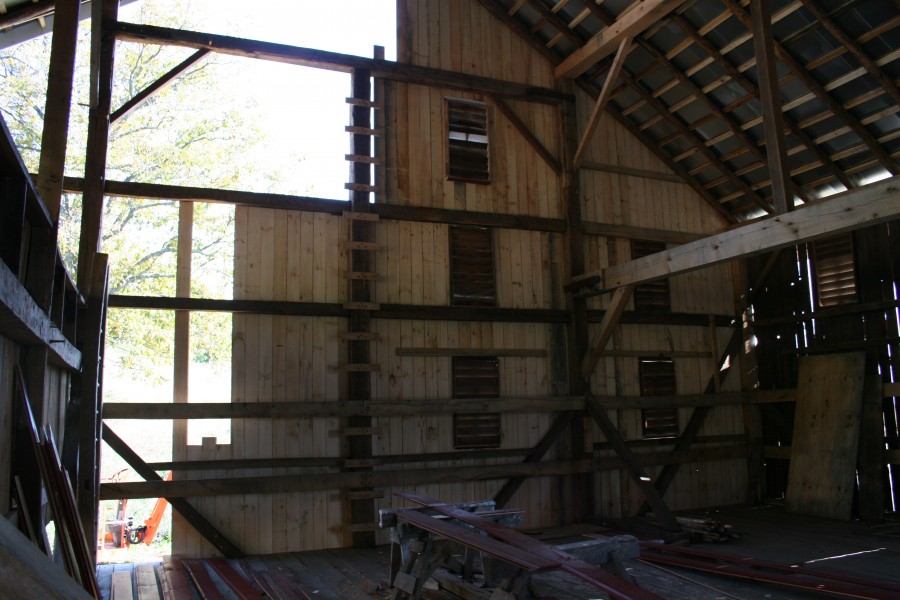

We added 2x8 oak bump rails to the interior face of the framing to protect the siding from damage from large hay bales.

We added 2x8 oak bump rails to the interior face of the framing to protect the siding from damage from large hay bales.

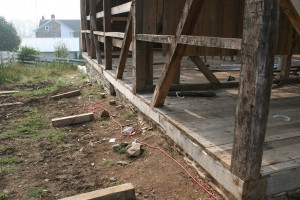

New sill timbers installed, braces spliced, flooring complete.

New sill timbers installed, braces spliced, flooring complete.
Partition plates replaced and roof straightened.

Partition plates replaced and roof straightened.

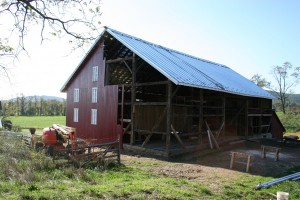

New siding, custom-milled to match the original.

New siding, custom-milled to match the original.
Original louvers are reinstalled in the new siding.

Original louvers are reinstalled in the new siding.

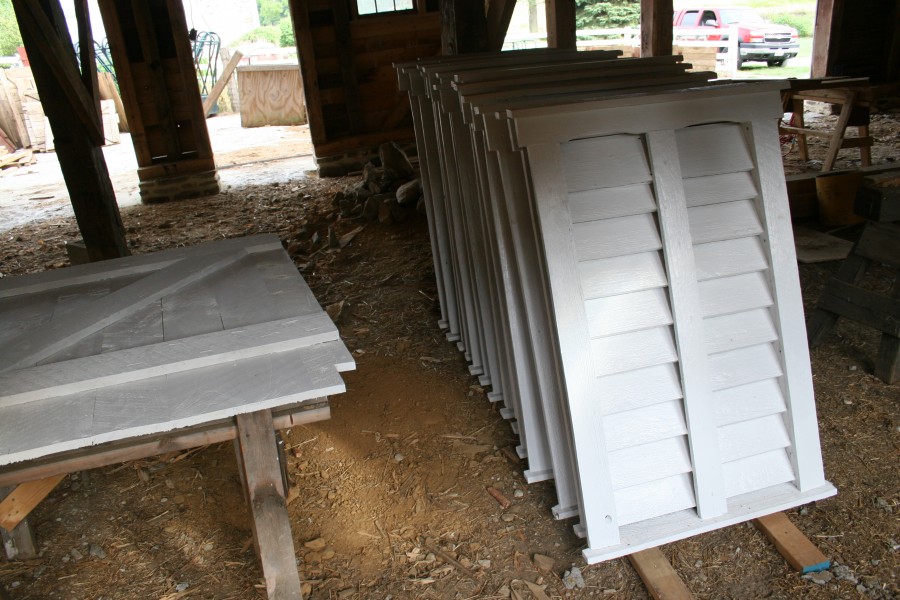

With the siding going back up the barn nears completion.  Louvers and more siding are being painted under the new roof.

With the siding going back up the barn nears completion. Louvers and more siding are being painted under the new roof.

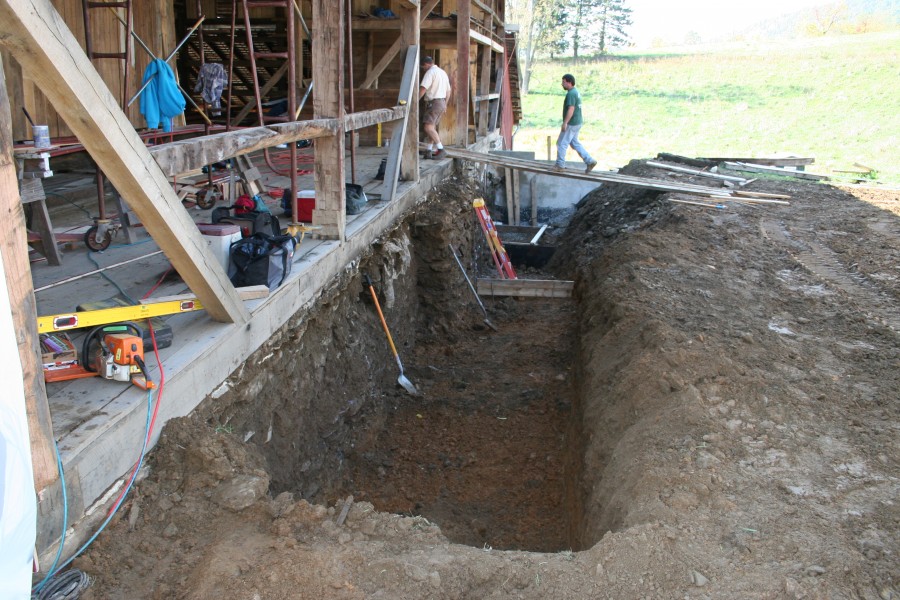

Barn bridge excavated to install drainage and concrete retaining wall to resist ground heave against the stonework.

Barn bridge excavated to install drainage and concrete retaining wall to resist ground heave against the stonework.

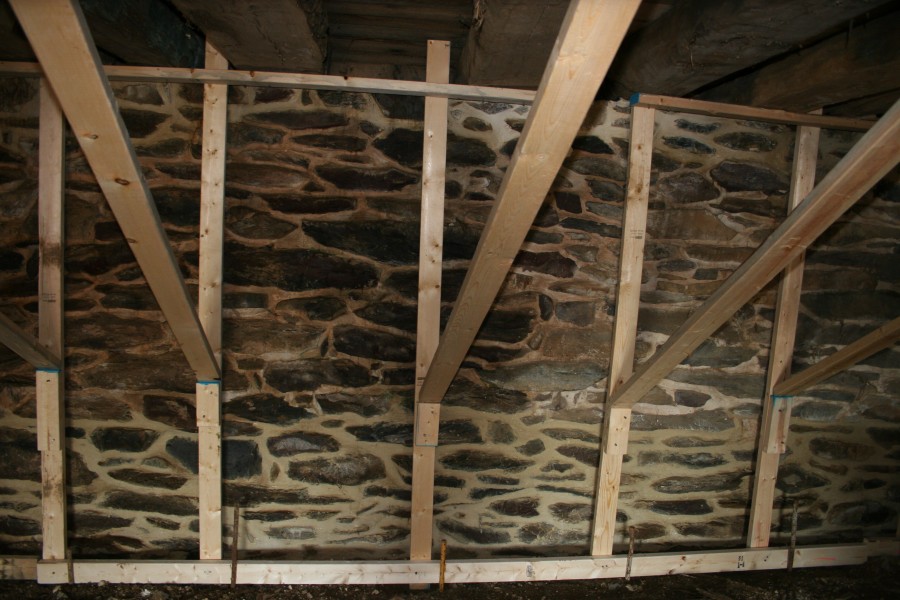

Freshly repointed parlor wall is braced to prevent movement under the pressure from concrete being poured outside.

Freshly repointed parlor wall is braced to prevent movement under the pressure from concrete being poured outside.

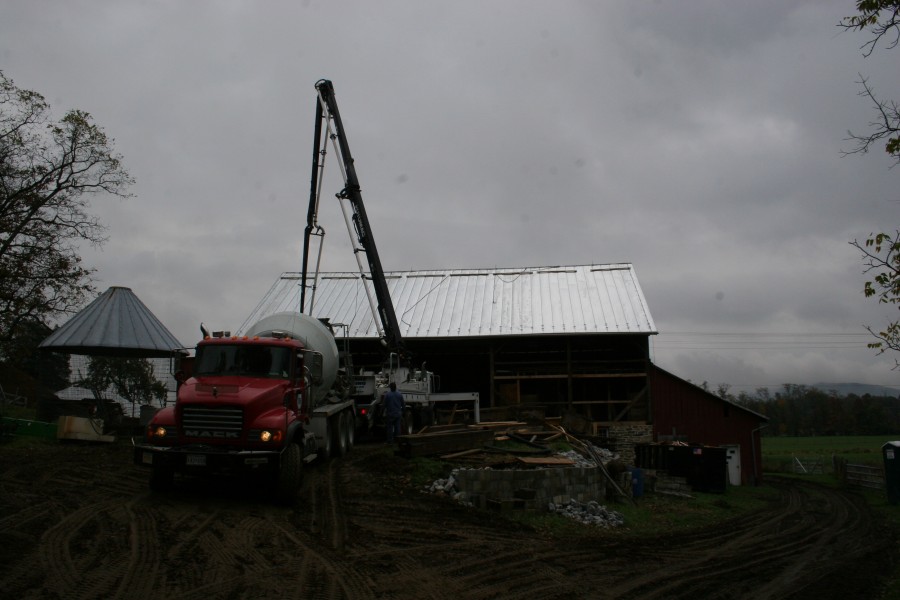

Bank barn sites are often difficult to manuver equipment along.  A concrete pumper helps us place our concrete more efficiently.

Bank barn sites are often difficult to manuver equipment along. A concrete pumper helps us place our concrete more efficiently.

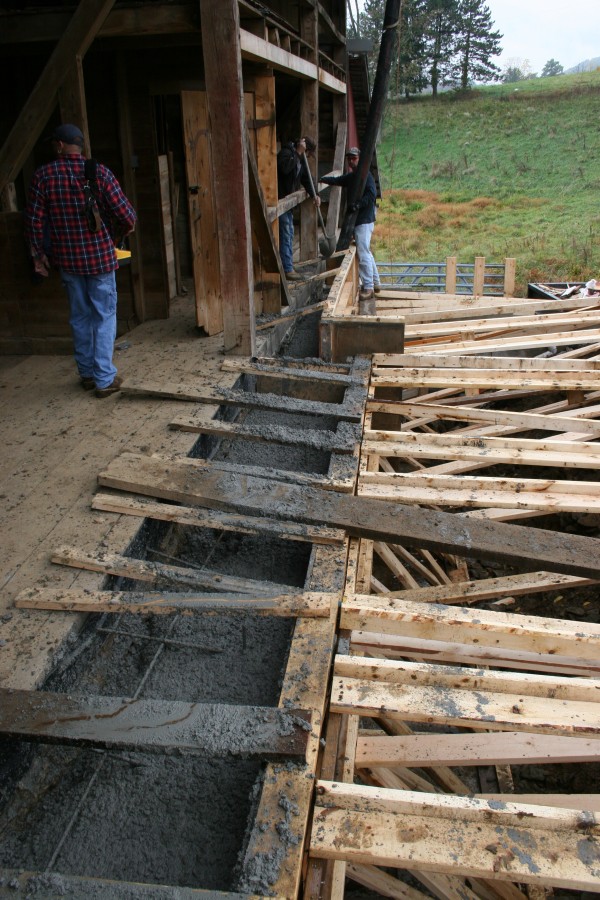

New reinforced reataining wall formed and poured

New reinforced reataining wall formed and poured

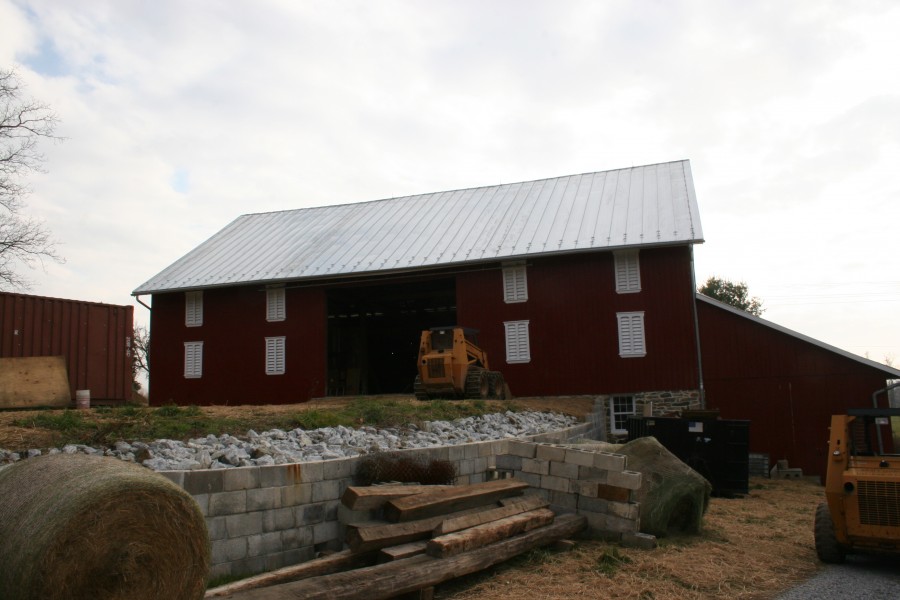

Retaining wall in place and backfilled.  Siding complete on barn bridge wall.

Retaining wall in place and backfilled. Siding complete on barn bridge wall.
New roof, new doors, new siding, and repair timbers contrast, for now, against the original material.

New roof, new doors, new siding, and repair timbers contrast, for now, against the original material.

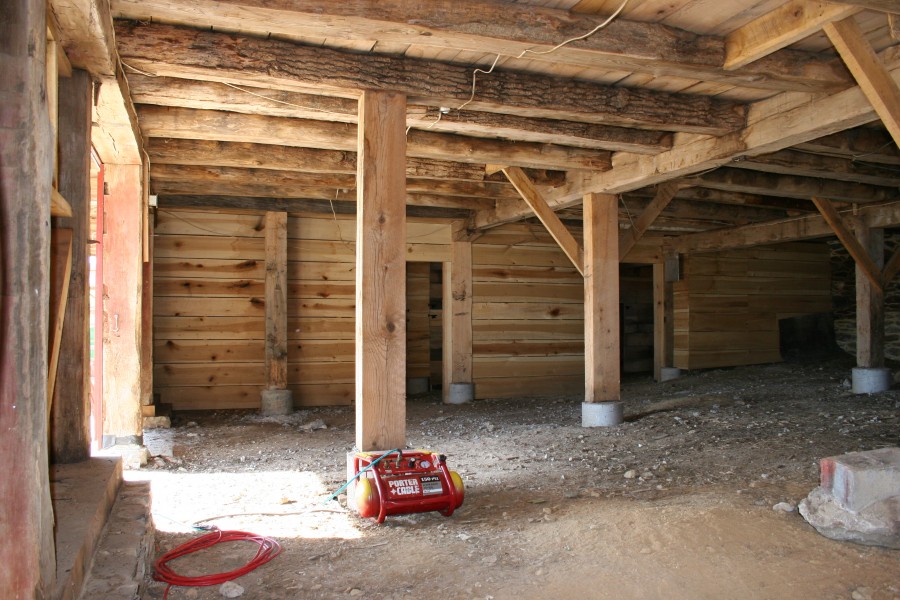

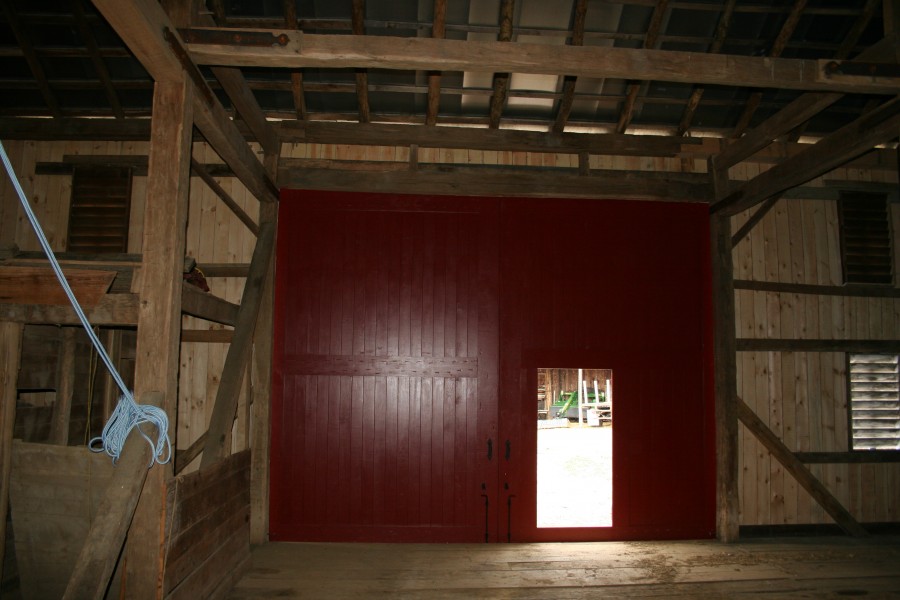

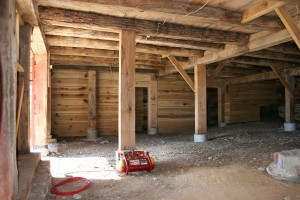

Parlor level complete, with new doors and new interior partitions.

Parlor level complete, with new doors and new interior partitions.

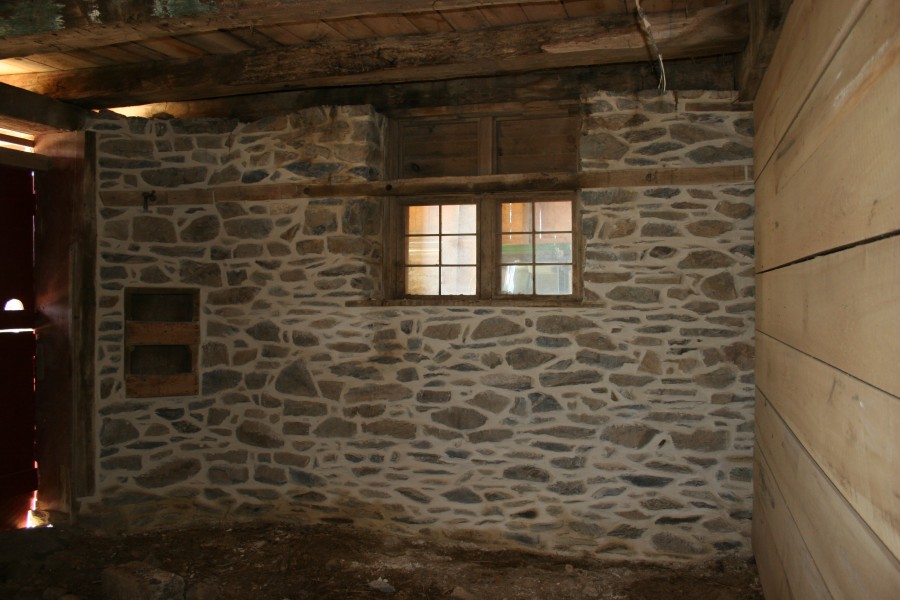

Repointed stone work and new animal stalls.

Repointed stone work and new animal stalls.

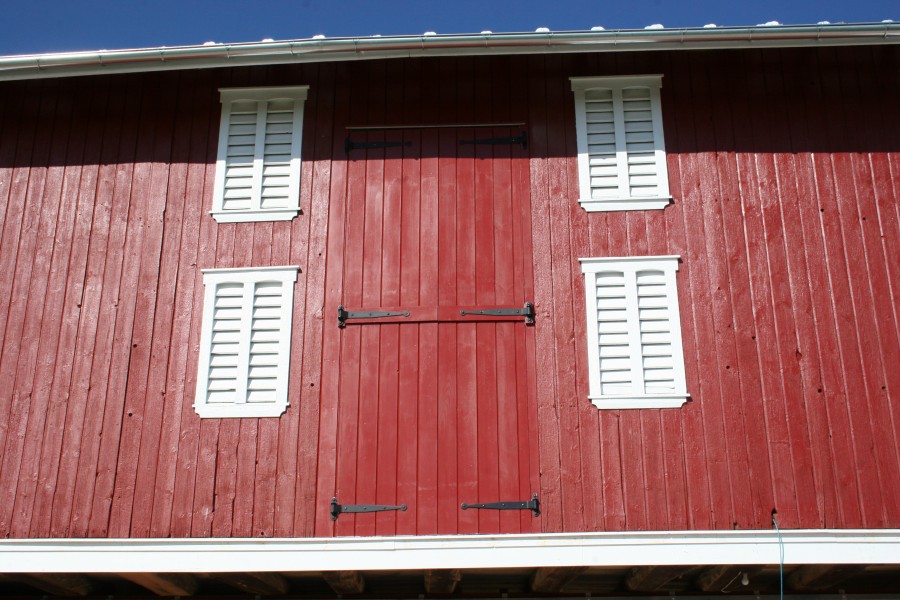

New straw doors above the forebay.  Siding on this side is original.

New straw doors above the forebay. Siding on this side is original.

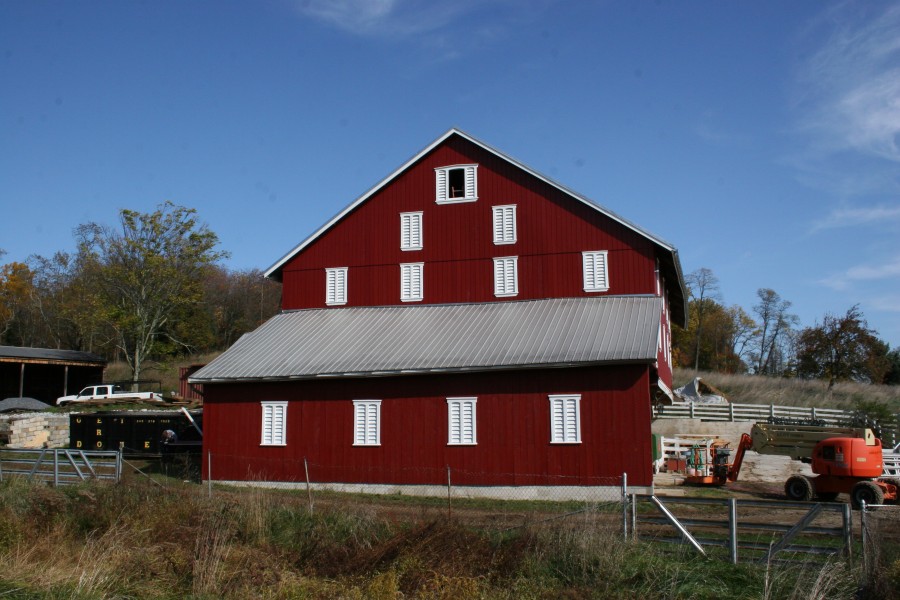

Southern face with fresh paint on the wagon shed.

Southern face with fresh paint on the wagon shed.

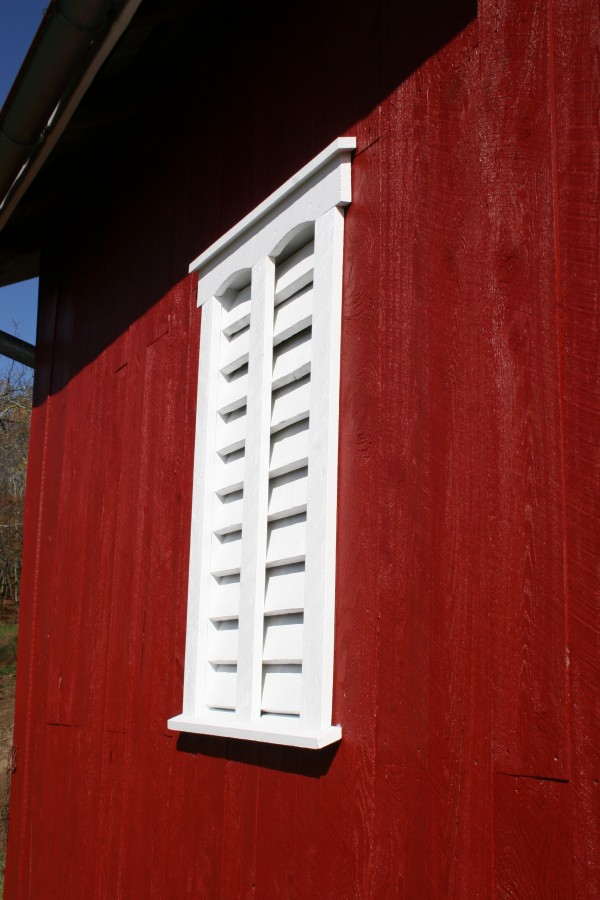

Repaired and repainted louver.

Repaired and repainted louver.

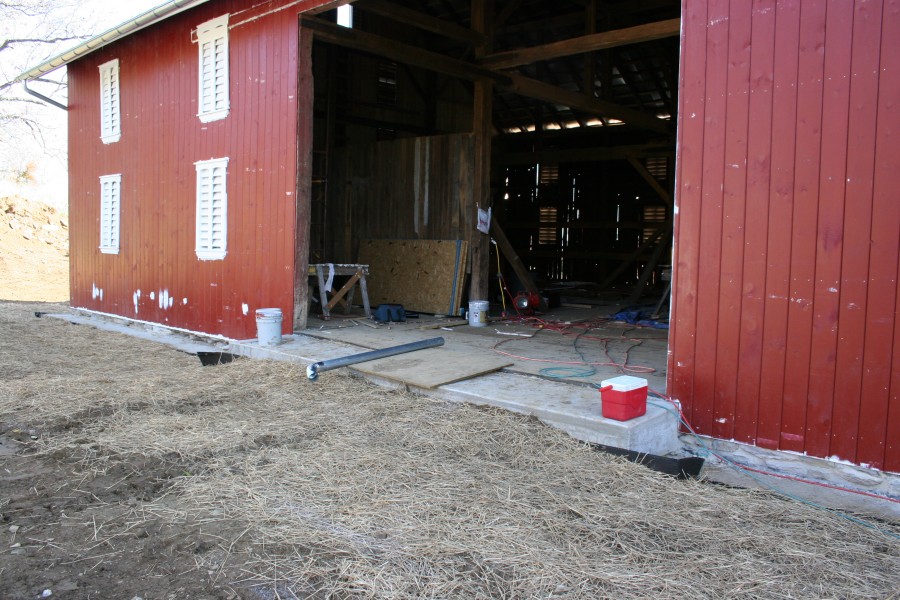

Barn bridge side complete except for new sliding doors.

Barn bridge side complete except for new sliding doors.

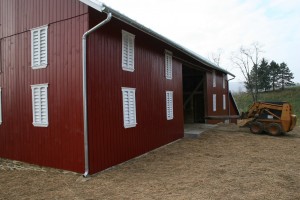

Bringing hewn logs back inside to re-create sliding loft floor above threashing bay.

Bringing hewn logs back inside to re-create sliding loft floor above threashing bay.

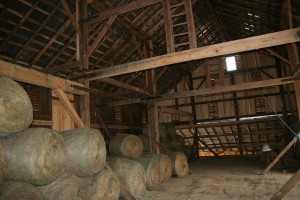

Not quite finished and already storing hay for the winter.

Not quite finished and already storing hay for the winter.
Forebay wall complete with new doors.

Forebay wall complete with new doors.

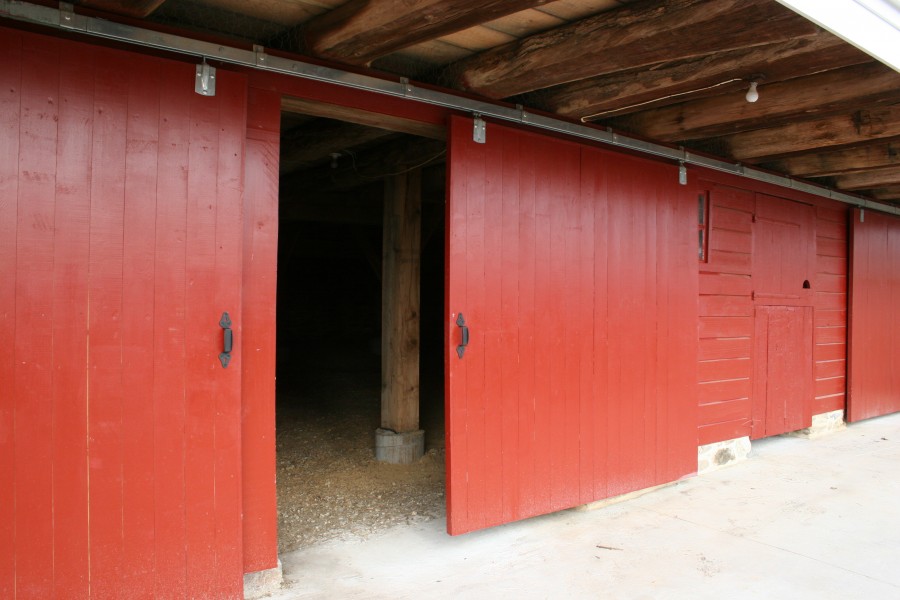

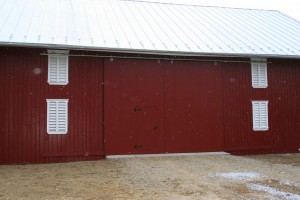

New Barn Bridge doors hung on cannonball style slider track.

New Barn Bridge doors hung on cannonball style slider track.
The new siding and doors make a striking contrast against the antique timber frame.

The new siding and doors make a striking contrast against the antique timber frame.

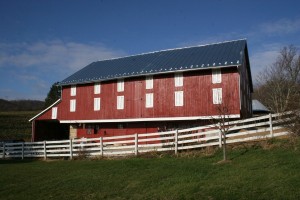

Functional beauty, ready to serve another century.

Functional beauty, ready to serve another century.

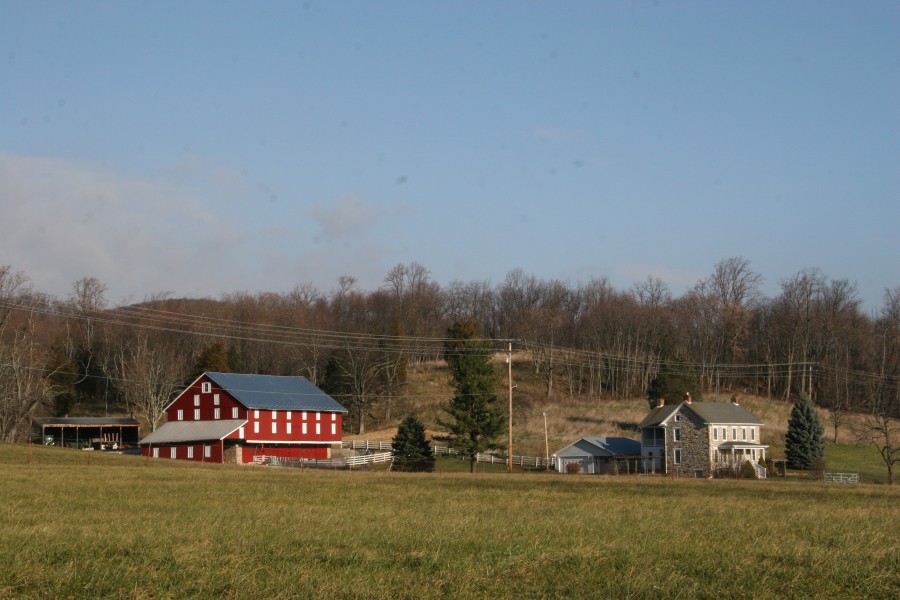

A beautiful and eye-catching part of a pristine agrarian landscape.

A beautiful and eye-catching part of a pristine agrarian landscape.
